CLI access¶

Get the Docker CLI client¶

Download the Docker CLI client by using the UCP web UI. The web UI ensures that you have the right version of the CLI tools for the current version of UCP.

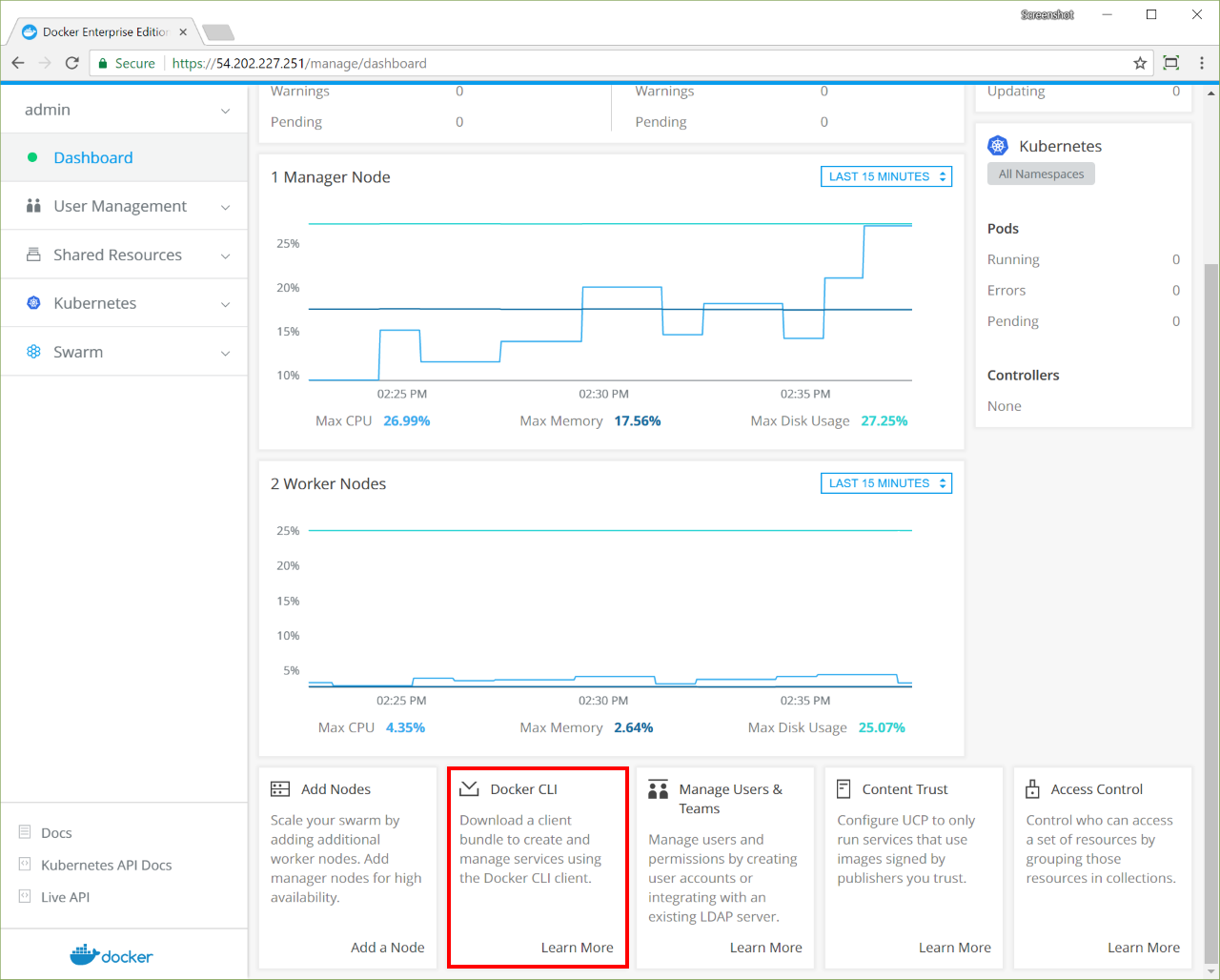

1. From the dashboard, click Learn more in the Docker CLI card at the bottom of the page.

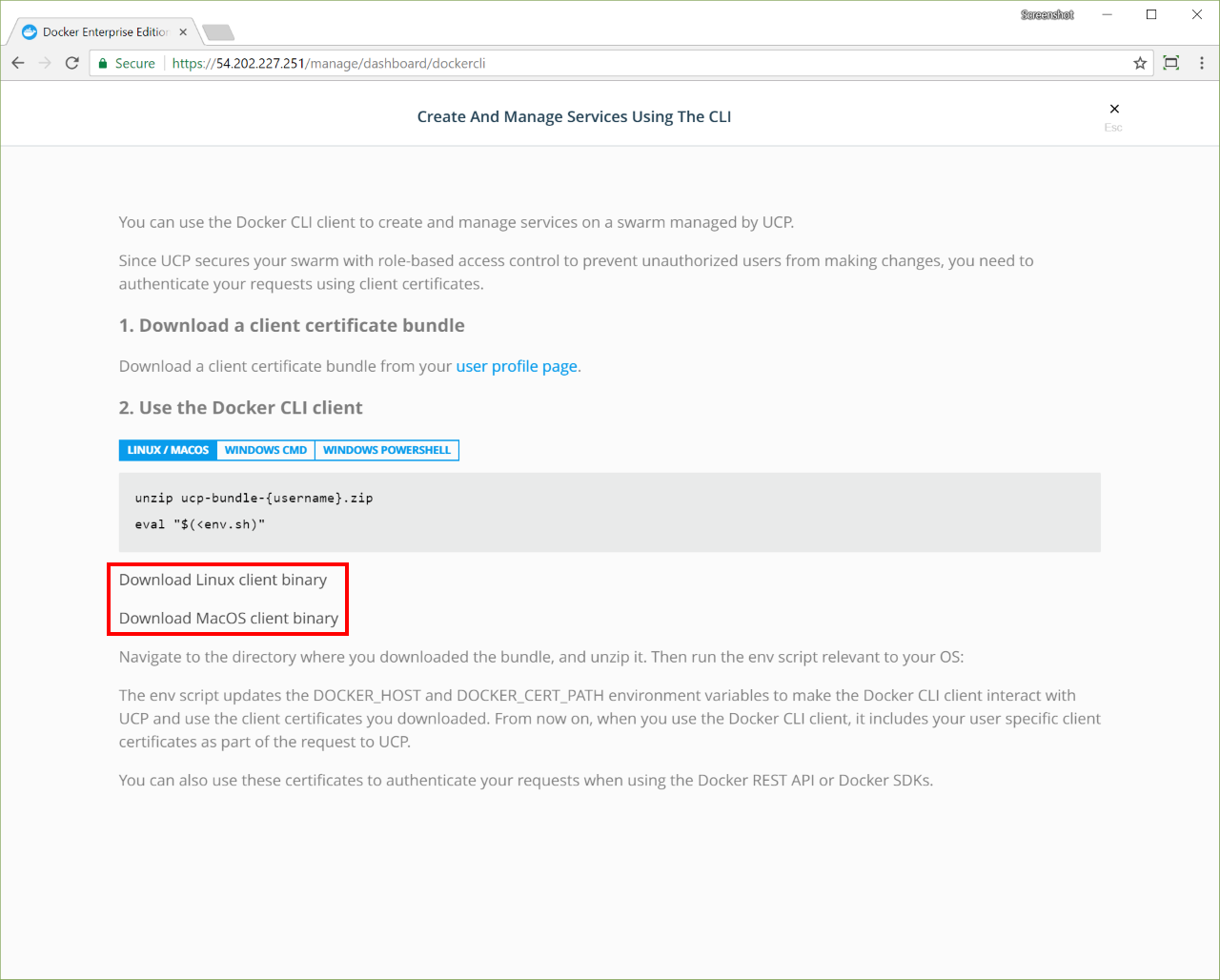

2. On the Create and manage services using the CLI page, click Download Linux client binary or Download MacOS client binary.



3. Unzip the docker archive.

Download client certificates¶

To use the Docker CLI with UCP, download a client certificate bundle by using the UCP web UI.

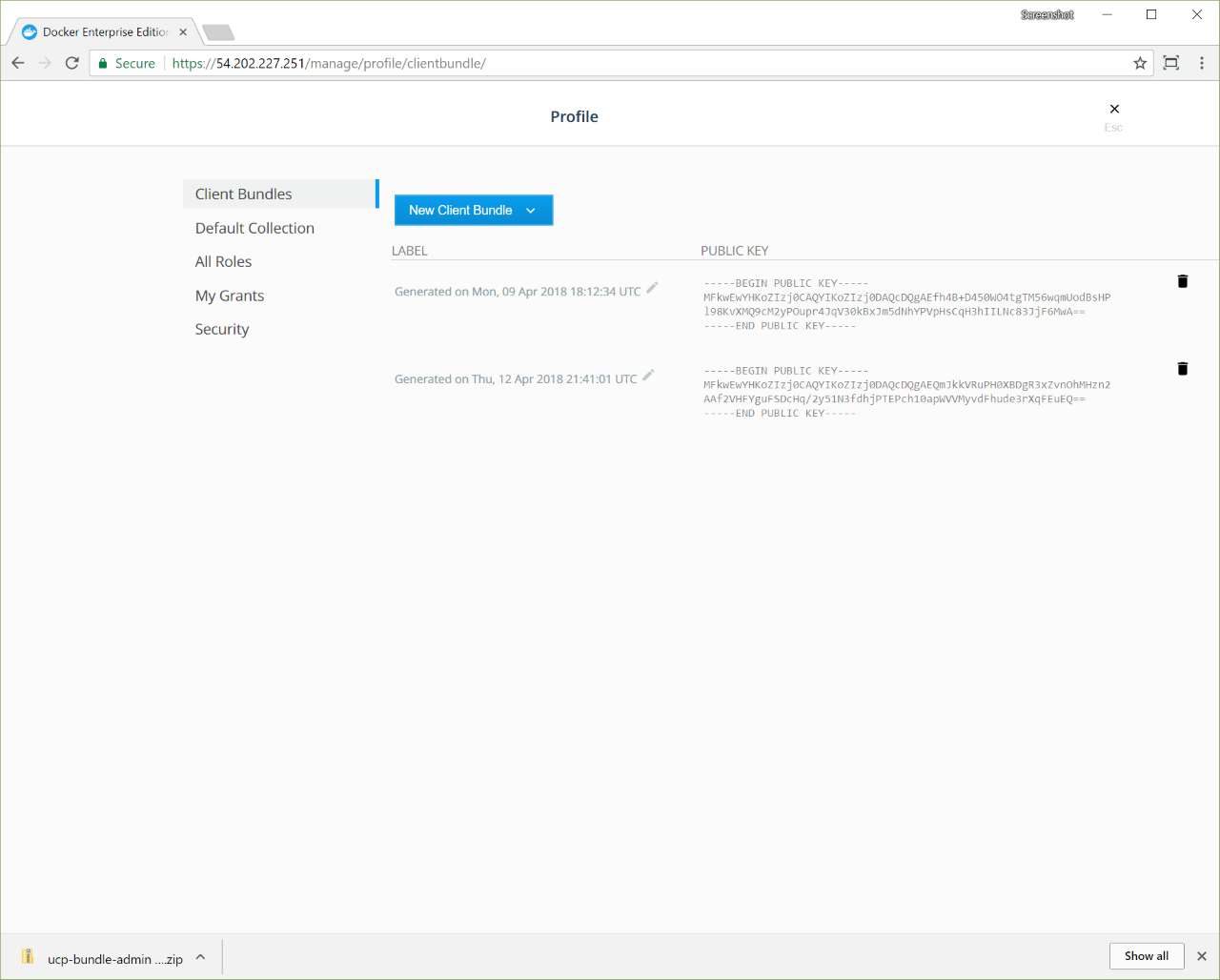

1. Navigate to the My Profile page.

2. In the left pane, click Client Bundles and choose New Client Bundle to download the certificate bundle.



Use client certificates¶

Once you’ve downloaded a client certificate bundle to your local computer, you can use it to authenticate your requests.

Navigate to the directory where you downloaded the user bundle, and extract the zip file into a directory. Then use the utility script appropriate for your system:

cd client-bundle && eval "$(<env.sh)"
# Run this from an elevated prompt session
cd client-bundle && env.cmd

The client bundle utility scripts update the environment variables DOCKER_HOST to make your client tools communicate with your UCP deployment, and the DOCKER_CERT_PATH environment variable to use the client certificates that are included in the client bundle you downloaded. The utility scripts also run the kubectl config command to configure kubectl.

To confirm that your client tools are now communicating with UCP, run:

docker version --format '{{.Server.Version}}'
kubectl config current-context

The expected Docker server version starts with ucp/, and the expected kubectl context name starts with ucp_.

You can now use the Docker and kubectl clients to create resources in UCP.

cd client-bundle && docker context import myucp ucp-bundle-$USER.zip"


Refer to `Working with
Contexts </engine/context/working-with-contexts/>`__ for more
information on using Docker contexts.

Client certificates for administrators¶

UCP issues different types of certificates depending on the user:

• User certificate bundles: only allow running docker commands through a UCP manager node.
• Admin user certificate bundles: allow running docker commands on the Docker Engine of any node.

Download client certificates by using the REST API¶

You can also download client bundles by using the UCP REST API. In this example, we use curl to make the web requests to the API, jq to parse the responses, and unzip to unpack the zip archive.

To install these tools on an Ubuntu distribution, you can run:

sudo apt-get update && sudo apt-get install curl jq unzip

Then you get an authentication token from UCP and use it to download the client certificates.

# Create an environment variable with the user security token
AUTHTOKEN=$(curl -sk -d '{"username":"<username>","password":"<password>"}' https://<ucp-ip>/auth/login | jq -r .auth_token)

# Download the client certificate bundle
curl -k -H "Authorization: Bearer $AUTHTOKEN" https://<ucp-ip>/api/clientbundle -o bundle.zip

# Unzip the bundle.
unzip bundle.zip

# Run the utility script.
eval "$(<env.sh)"

# Confirm that you can see UCP containers:
docker ps -af state=running

On Windows Server 2016, open an elevated PowerShell prompt and run:

$AUTHTOKEN=((Invoke-WebRequest -Body '{"username":"<username>", "password":"<password>"}' -Uri https://`<ucp-ip`>/auth/login -Method POST).Content)|ConvertFrom-Json|select auth_token -ExpandProperty auth_token

[io.file]::WriteAllBytes("ucp-bundle.zip", ((Invoke-WebRequest -Uri https://`<ucp-ip`>/api/clientbundle -Headers @{"Authorization"="Bearer $AUTHTOKEN"}).Content))

Docker Build and UCP¶

When using a UCP client bundle and buildkit, follow the instructions provided in Restrict services to worker nodes to make sure that builds are not accidentally scheduled on manager nodes.

For additional information on ‘docker build’ and buildkit, refer to build command documentation and buildkit documentation.
