Creating a Secure Supply Chain of images is vitally important. Every organization needs to weigh ALL options available and understand the security risks. Having so many options for images makes it difficult to pick the right ones. Ultimately every organization needs to know the provenance of all the images, even when trusting an upstream image from hub.docker.com. Once the images are imported into the infrastructure, a vulnerability scan is vital. Mirantis Secure Registry with Image Scanning gives insight into any vulnerabilities. Finally, everything needs to be automated to provide a succinct audit trail.
This reference architecture describes the components that make up a Secure Supply Chain. Topics include using Git, GitLab, and the Docker Hub to feed the supply chain. All the tools listed and demonstrated within this reference architecture can be replaced with alternatives. The Secure Supply Chain can be broken into three stages:
Even though there are many alternatives, this document focuses on one set:
One motto to remember for this reference architecture is “No human will build or deploy code headed to production!”
Before continuing, become familiar with and understand:
The following abbreviations are used in this document:
Abbreviation | Description |
---|---|
MKE | Mirantis Kubernetes Engine |
MSR | Mirantis Secure Registry |
DCT | Docker Content Trust |
RBAC | Role Based Access Controls |
CA | Certificate Authority |
CI | Continuous Integration |
CD | Continuous Deployment |
HA | High Availability |
BOM | Bill of Materials |
CLI | Command Line Interface |
There are several good reasons why you need a Secure Supply Chain. Creating a Secure Supply Chain is theoretically mandatory for production. Non-production pipelines can also take advantage of having an automated base image. When thinking about Supply Chain, a couple of key phrases come to mind:
Ideally you want the shortest path for images. You want to guarantee the success of the image making it through the chain. Limiting the steps is a great way to reduce the number of moving parts. At a high level, only two components, Git (GitLab) and Mirantis Secure Registry (MSR), are necessary.
Below is a basic diagram of the path today.
No matter how good a supply chain is, it all depends on starting with a “Known Good Source”. Stage 1 can be broken down into two possible starting points.
There are good reasons for both. The Docker Hub path means that the upstream image is inherited with a bit of risk in how the vendor built it. The Git path means there are risks taken when building the image. Both entry points have their pros and cons. Both starting points have verifiable contents to ensure they are a “known good source”.
The next sections look at both sources in more detail.

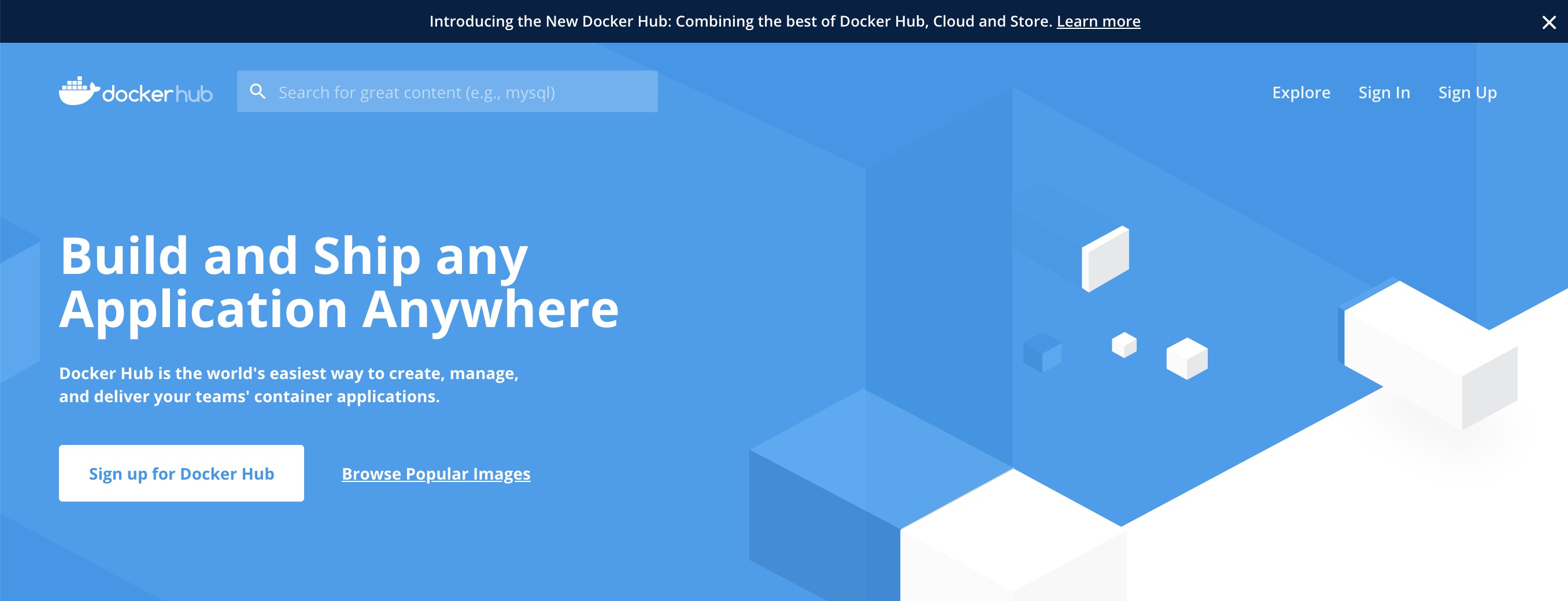

Docker Hub, hub.docker.com, should be the first place to look for images that are ready for use. The owners of the images carry the responsibility of updating and ensuring that there are no vulnerabilities. Thanks to Docker Hub, all Certified and Official images are scanned for vulnerabilities. Docker Hub and Vendors take things a step further with Certified images. Certified images go through an extensive vetting process, and essentially come with a guarantee from the vendor and Docker that the container will work. The Store also includes Official images. Official images, updated regularly, are built by Docker. Docker Hub also contain community images, which should be used at last resort.
Picking the right images from Docker Hub is critical. Start with Certified Images, then move on to official images. Lastly, consider community images. Only use community images that are an automated build. This helps ensure that they are updated in a timely fashion. Verification of the freshness of the image is important as well.
From a blog post on Certified Images:
The Docker Certification Program is designed for both technology partners and enterprise customers to recognize Containers and Plugins that excel in quality, collaborative support, and compliance. Docker Certification is aligned to the available Docker EE infrastructure and gives enterprises a trusted way to run more technology in containers with support from both Docker and the publisher. Customers can quickly identify the Certified Containers and Plugins with visible badges and be confident that they were built with best practices, tested to operate smoothly on Docker EE.

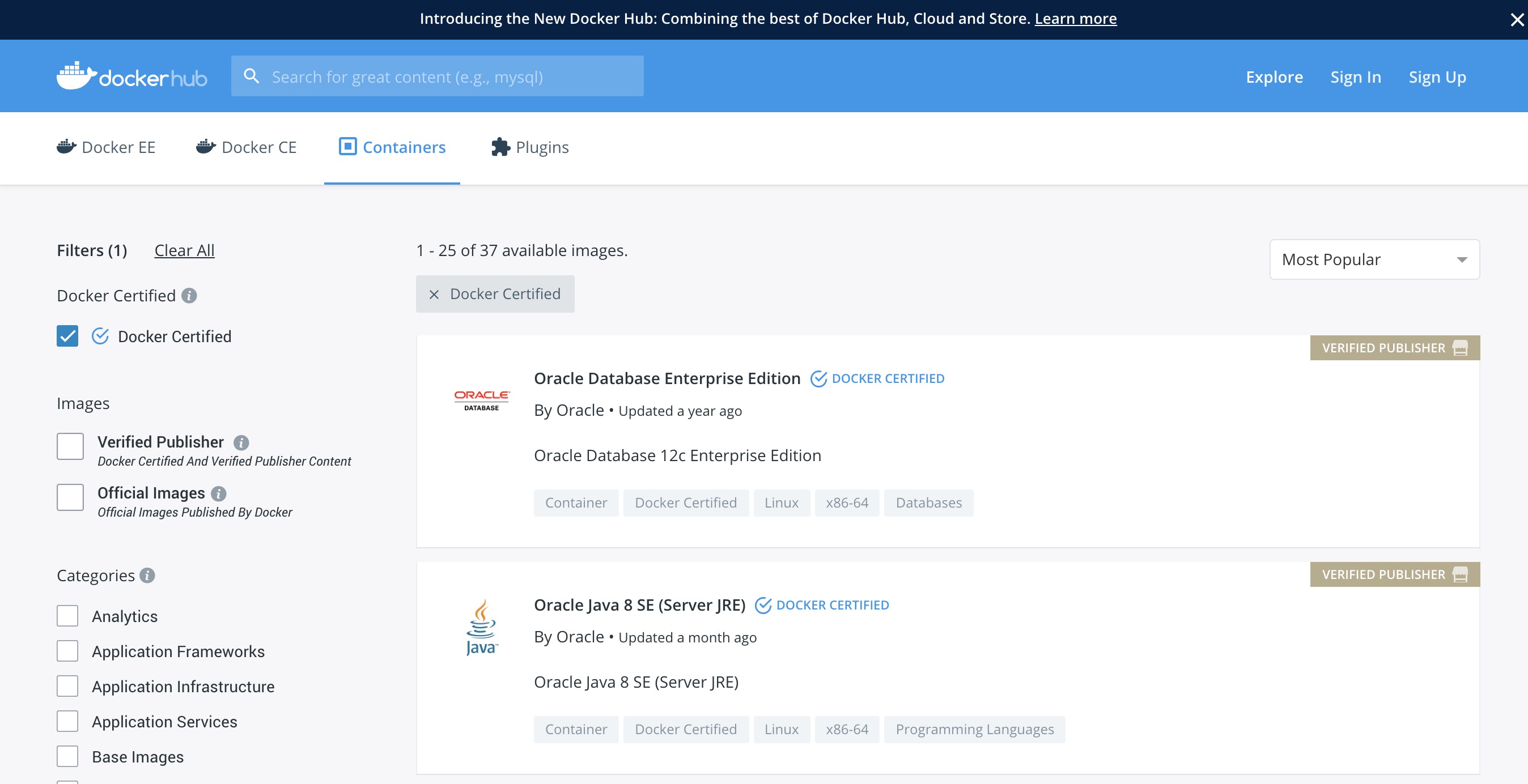

When searching Docker Hub for images, make sure to check the Docker Certified checkbox.
One of the great features about Docker Hub is that the images are scanned for security vulnerabilities. This allows for inspection of the images before pulling.
When using upstream images that are not Official or Certified, ensure that the image is an “automated build”. Reviewing the Dockerfile is an important step to ensure only the correct bits are in the image. Last resort is to consider creating an “automated” image for the community.
Please keep in mind that ANY image pulled from Hub or Store should also receive the same level of scrutiny through Mirantis Secure Registry.
In today’s modern enterprise, version control systems are the center of all code. Version control systems such as Git are also a great way to keep track of configuration, becoming the “Source of Truth” for your enterprise. There are several companies that produce Git servers. GitLab CE is a great open source one. In the following example, GitLab Community Edition is used.
The ideal Git repo structure contains all the files necessary for
building and deploying. Specifically the Dockerfile
, any code, and
the stack.yml
. The Dockerfile
is the build recipe for the Docker
image. The stack.yml
, also known as a compose YAML file, is used for
describing the stack.
GitLab has some good instructions for setting up with Docker images. Because Git uses SSH port (22) by default, either the host’s port or Git’s port needs to be changed. The following shows how to move GitLab’s port to 2022. For production, moving the host’s SSH port might make more sense. Also, permanent storage is needed for a stateful install. Here is an example Docker Compose for setting up Gitlab-CE:
version: "3.3"
services:
gitlab:
image: gitlab/gitlab-ce:latest
ports:
- 80:80
- 443:443
- 2022:22
volumes:
- /var/run/docker.sock:/var/run/docker.sock
- /srv/gitlab/config:/etc/gitlab
- /srv/gitlab/logs:/var/log/gitlab
- /srv/gitlab/data:/var/opt/gitlab
restart: always
environment:
- GITLAB_OMNIBUS_CONFIG="external_url 'http://my.domain.com/'; gitlab_rails['lfs_enabled'] = true;"
networks:
gitlab:
gitlab-runner:
image: gitlab/gitlab-runner:alpine
volumes:
- /var/run/docker.sock:/var/run/docker.sock
- /srv/gitlab-runner/config:/etc/gitlab-runner
- /root/.docker:/root/.docker
- /root/.notary:/root/.notary
restart: always
networks:
gitlab:
networks:
gitlab:
Save this as gitlab.yml
. Then execute the following commands:
$ sudo docker swarm init
$ sudo docker stack deploy -c gitlab.yml gitlab
Note that it will take a minute for GitLab to start.
In order to leverage the idea of “No human will push code to
production,” you need to automate all the things. Thanks to recent
editions of GitLab, you can configure CI/CD functions directly. This
greatly simplifies setup and maintainability. To take advantage of
CI/CD, first register at least one runner. The runner is included in the
gitlab.yml
from the previous setup section. The next step is to
configure the runner.
To activate the runner installed with the docker stack deploy
from

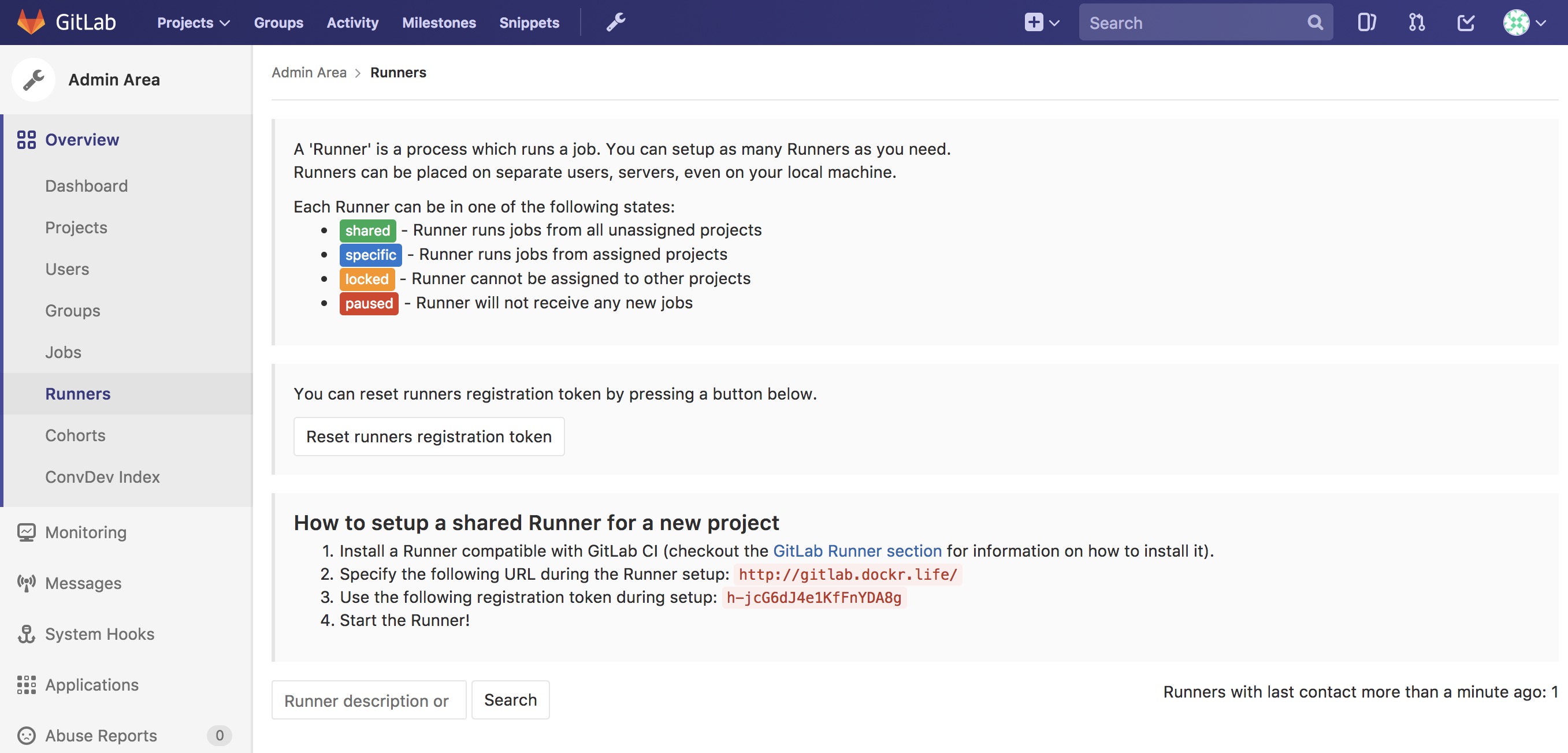

the previous section, you need to get the runner token. Navigate to
Admin Area –> Runners. Here you can find the token needed to
register the runner.
Luckily there is a shortcut to registering the runner. Simply ssh into the GitLab node and run the following Docker command (Notice the token from the GitLab CE page):
$ docker exec -it $(docker ps --format '{{.Names}}\t{{.ID}}'|grep runner|awk '{print $2}') \
gitlab-runner \
register -n \
--url http://gitlab.example.com \
--registration-token $token \
--executor docker \
--description "local docker" \
--docker-image "docker:latest" \
--docker-volumes "/var/run/docker.sock:/var/run/docker.sock" \
--docker-volumes "/root/.docker:/root/.docker"
Once registered you should see the Runner available with a shared
tag. You also want to make sure that Run untagged jobs
is checked
and that Lock to current projects
is unchecked.
One great way to leverage the “Source of Truth” is to store all the
contents that compose the image and the stack together. Simply create a
directory for each component in the root of the repository, then store
only the bits that make up that component in its appropriate directory.

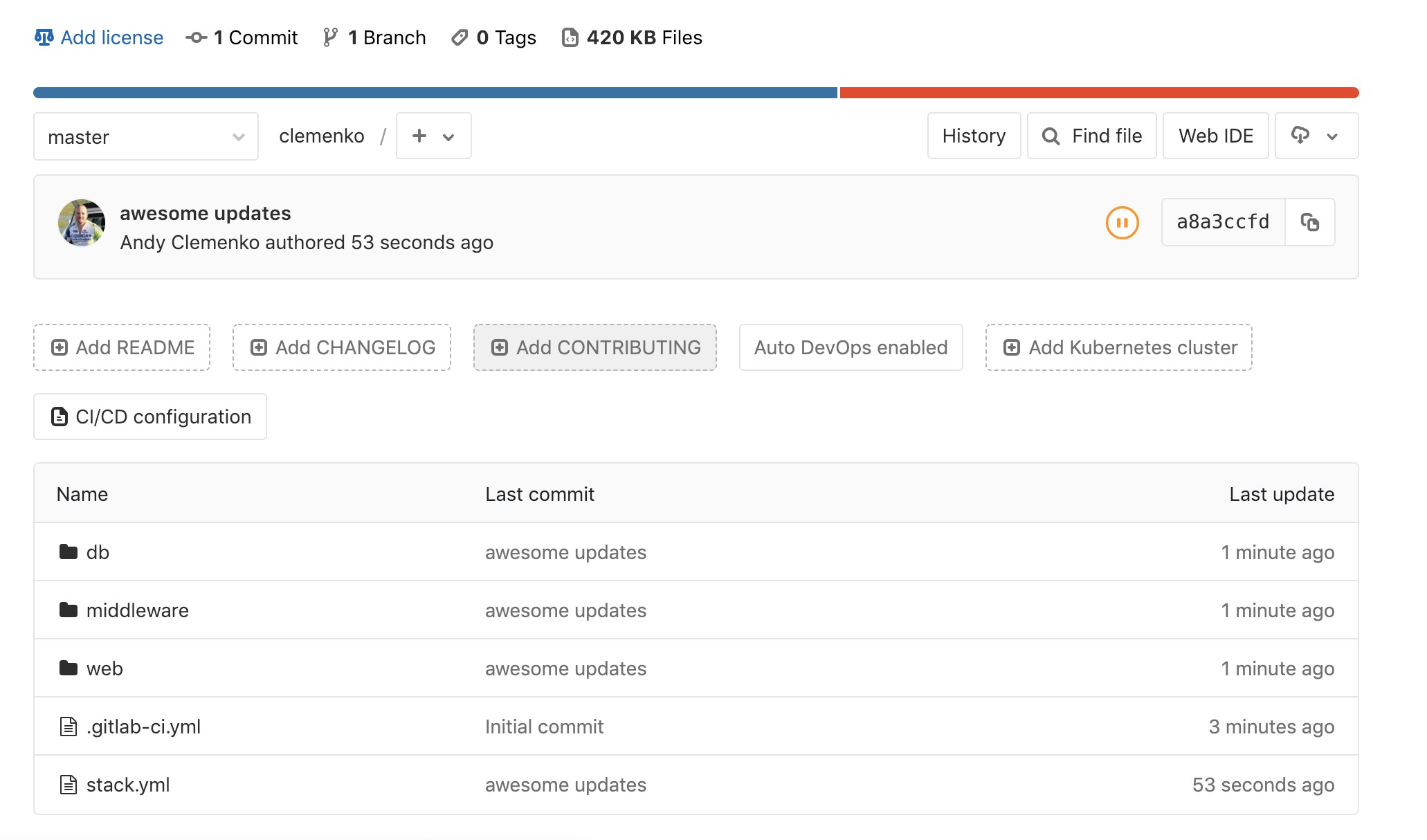

In this example there is a three tier app made up of “web,”
“middleware,” and “db”. The stack.yml
would also be stored at the
root level of the repository. Ideally, the directory structure would
contain:
Dockerfile
. Source bits and artifacts for each component
in a separate directory.stack.yml
, which is used for docker stack deploy
..gitlab-ci.yml
.Don’t forget to utilize multi-stage builds in Dockerfiles. Multi-stage builds help to reduce the size of the resulting image. Please take a look at the multi-stage documentation.
It is worth looking at what makes a good Dockerfile
. One thing that
is commonly overlooked is the use of labels. Since it is simply extra
metadata for the image itself it doen’t affect the run time at all. We
highly recommend adding labels from opencontainers
spec.
And the most important label of all is the
org.opencontainers.image.authors
. This is a great resource for
tracking back who wrote the dockerfile. You can follow this Dockerfile
example:
FROM alpine
ARG BUILD_DATE
ARG BUILD_VERSION
LABEL org.opencontainers.image.authors="clemenko@docker.com" \
org.opencontainers.image.source="https://github.com/clemenko/dockerfiles/tree/master/demo_flask" \
org.opencontainers.image.created=$BUILD_DATE \
org.opencontainers.image.title="clemenko/flask_demo" \
org.opencontainers.image.description="The repository contains a simple flask application " \
org.opencontainers.image.source=$BUILD_VERSION
RUN apk -U upgrade && apk add --no-cache curl py-pip &&\
pip install --no-cache-dir --upgrade pip &&\
pip install --no-cache-dir flask redis pymongo &&\
rm -rf /var/cache/apk/*
WORKDIR /code
ADD . /code
EXPOSE 5000
HEALTHCHECK CMD curl -f http://localhost:5000/healthz || exit 1
CMD ["python", "app.py"]
Here is where the CI magic happens. GitLab looks to a file at the root
of the repository called .gitlab-ci.yml
. This is the CI declarative
file.
Note
Check out the GitLab documentation on this topic.

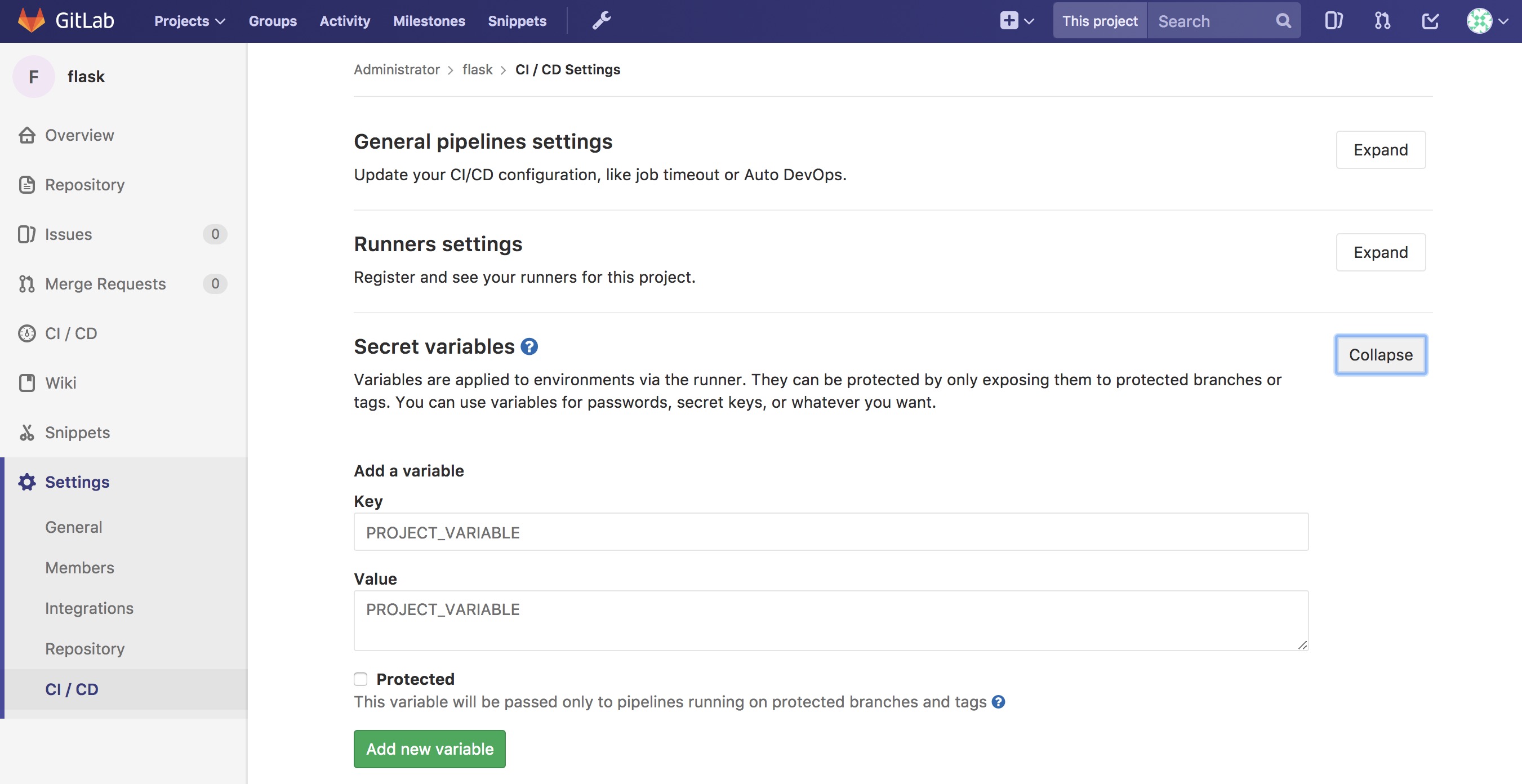

Consider the following scenarios. Be sure to configure the variables in each individual repository.
Here is a good example of building an image from git itself.
# Official docker image.
variables:
DOCKER_DRIVER: overlay2
image: docker:latest
before_script:
- docker login -u $DTR_USERNAME -p $DTR_PASSWORD $DTR_SERVER
build:
stage: build
script:
- docker build --pull -t dtr.example.com/admin/"$CI_PROJECT_NAME"_build:$CI_JOB_ID .
- docker push dtr.example.com/admin/"$CI_PROJECT_NAME"_build:$CI_JOB_ID
- docker rmi dtr.example.com/admin/"$CI_PROJECT_NAME"_build:$CI_JOB_ID
Here is a good example of a .gitlab-ci.yml
for pulling, tagging, and
pushing an image from hub.docker.com to your MSR.
# Official docker image.
variables:
DOCKER_DRIVER: overlay2
image: docker:latest
before_script:
- docker login -u $DTR_USERNAME -p $DTR_PASSWORD $DTR_SERVER
stages:
- signer
signer:
stage: signer
script:
- docker pull $DTR_SERVER/admin/flask:latest
- export DOCKER_CONTENT_TRUST=1
- docker push $DTR_SERVER/admin/flask:latest
- docker rmi $DTR_SERVER/admin/flask:latest
GitLab is now setup with variables and build declaratives. Next, add a trigger to your project.
GitLab includes an awesome CI tool as well as a way to trigger the pipeline remotely. GitLab calls these triggers. The easiest way to create these triggers is to navigate to Projects –> Settings –> CI/CD –> Pipeline triggers –> Expand.
Here is an example of the trigger format.
http://gitlab.example.com/api/v4/projects/$PROJECT/trigger/pipeline?token=$TOKEN&ref=$REF
.
The three fields that are needed here are $PROJECT
, $TOKEN
, and
$REF
. $REF
should be set to the branch name. $TOKEN
should
be set to the token you get from GitLab. The best way to get the
$PROJECT
is to simply copy the URL in the Pipeline Triggers
page. You will need the Pipeline Triggers later.
Next, add Mirantis Secure Registry (MSR).
MSR is much more than a simple registry. It includes some great features that increase the strength of the supply chain. Some of the new features include image promotion and immutability.
The following sections look at some of these new features.

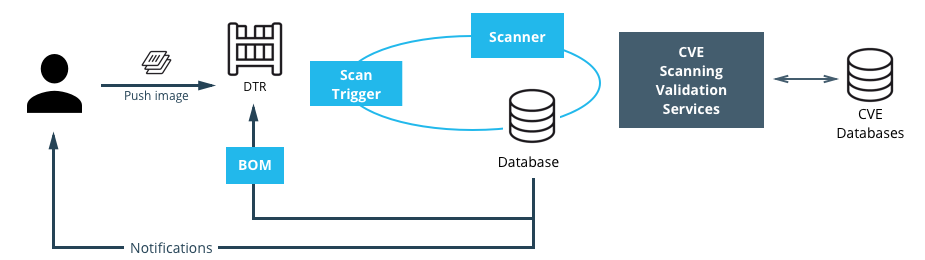

MSR includes on-site image scanning. The on-site scanning engine within MSR scans images against the CVE Database. First, the scanner performs a binary scan on each layer of the image, identifies the software components in each layer, and indexes the SHA of each component. This binary scan evaluates the components on a bit-by-bit basis, so vulnerable components are discovered regardless of filename, whether or not they’re included on a distribution manifest or in a package manager, whether they are statically or dynamically linked, or even if they are from the base image OS distribution.
The scan then compares the SHA of each component against the CVE database (a “dictionary” of known information security vulnerabilities). When the CVE database is updated, the scanning service reviews the indexed components for any that match newly discovered vulnerabilities. Most scans complete within a few minutes; larger repositories may take longer to scan depending on your system resources. The scanning engine gives you a central point to scan all the images and delivers a Bill of Materials (BOM), which can be coupled with Notary to ensure an extremely secure supply chain for your images.
The scanning engine can also scan Windows binaries.
Before you begin, make sure that you or your organization has purchased a MSR license that includes Docker Security Scanning and that your Docker ID can access and download this license from the Docker Hub.
By default, when Security Scanning is enabled, new repositories
automatically scan on docker push
, but any repositories that existed
before scanning was enabled are set to “scan manually” mode by default.
If these repositories are still in use, you can change this setting from
each repository’s Settings page.
To enable Image Scanning, go to Settings –> Security, select Enable Scanning, and then select whether to use the Docker-supplied CVE database (Online — the default option) or use a locally-uploaded file (Offline — this option is only recommended for environments that are isolated from the Internet or otherwise can’t connect to Docker for consistent updates).
Once enabled in online mode, MSR downloads the CVE database from Docker,
which may take a while for the initial sync. If your installation cannot
access https://dss-cve-updates.docker.com/
you must manually upload
a .tar
file containing the security database.
If your MSR instance cannot contact the update server, you can download
and install a .tar
file that contains the database updates. These
offline CVE database files can be retrieved from
hub.docker.com under My Content –>
License Setup once you have logged in.
To see the results of the scans, navigate to the repository itself, then click Images. A clean image scan has a green checkmark shield icon:
A vulnerable image scan will list the number of Critical, Major, and Minor vulnerabilities:
There are two views for the scanning results, Layers and Components. The Layers view shows which layer of the image had the vulnerable binary. This is extremely useful when diagnosing where the vulnerability is in the Dockerfile:
The vulnerable binary is displayed, along with all the other contents of the layer, when you click the layer itself. In this example there are a few potentially vulnerable binaries:
Click Components view. From the Component view the CVE number, a link to CVE database, file path, layers affected, severity, and description of severity are available:
Now you can take action against a vulnerable binary/layer/image.
If you discover vulnerable components, check if there is an updated version available where the security vulnerability has been addressed. If necessary, contact the component’s maintainers to ensure that the vulnerability is being addressed in a future version or patch update.
If the vulnerability is in a base layer
(such as an operating
system) you might not be able to correct the issue in the image. In this
case, you might need to switch to a different version of the base layer,
or you might find an equivalent, less vulnerable base layer. You might
also decide that the vulnerability or exposure is acceptable.
Address vulnerabilities in your repositories by using updated and corrected versions of vulnerable components or by using different components that provide the same functionality. When you have updated the source code, run a build to create a new image, tag the image, and push the updated image to your MSR instance. You can then re-scan the image to confirm that you have addressed the vulnerabilities.
What happens when there are new vulnerabilities released? There are actually two phases. The first phase is to fingerprint the image’s binaries and layers into hashes. The second phase is to compare the hashes with the CVE database. The fingerprinting phase takes the longest amount of time to complete. Comparing the hashes is very quick. When there is a new CVE database, MSR simply compares the existing hashes with the new database. This process is also very quick. The scan results are always updated.
Now that you have scan results, it is time to add a Promotion Policy.
Since the release of Docker Trusted Registry 2.3.0 there are various ways to promote images based on promotion policies. You can create policies for promotion based upon thresholds for vulnerabilities, tag matching, and package names, and even the license. This gives great powers in automating the flow of images. It also ensures that images that don’t match the policy don’t make it to production. The criteria are as follows:
You can create and view the policies from either the source or the
target. The following is an example of All Vulnerabilities. It sets
up a promotion policy for the admin/flask_build
repo to “promote” to
admin/flask
if there are zero vulnerabilities.
First, navigate to the source repository, and go to the Policies
tab. From there select New Promotion Policy. Select the All
Vulnerabilities on the left. Then click less than or equals, enter
0
(zero) into the textbox, and click Add. Now select a target
for the promotion. On the right hand side, select the namespace and
image to be the target. Click Save & Apply. Applying the policy
executes against the source repository. Save applies the policy to
future pushes.
Notice the Tag Name In Target. This option provides the ability to change the tag according to some variables. It is recommended that you start out leaving the tag name the same. For more information please check out the Image Promotion Policy docs.
Notice the PROMOTED badge. One thing to note is that the Notary signature is not promoted with the image. This means a CI system must sign the promoted images. This can be achieved with the use of webhooks and promotion policy.
Consider a MSR setup where the base images get pushed from Gitlab to MSR. Then the images get scanned and promoted if they have zero vulnerabilities — part of a good Secure Supply Chain. This leads to Image Immutability.
MSR has the option to set a repository to Immutable. Setting a repository to Immutable means the tags can not be overwritten. This is a great feature for ensuring that your base images do not change over time. This example is of the Alpine base image. Ideally CI would update the base image and push to MSR with a specific tag. Being Immutable simply guarantees that you can always go back to the specific tag and trust it has not changed. This can be extended with an Image Promotion Policy.
A great example of using the Promotion Policy with Immutable tags is
when you are building images directly from Git. This example uses a
simple flask app. The .gitlab-ci.yml
has three basic steps : build,
push, remove. Push to a MSR repository,
dtr.example.com/admin/flask_build
, where Immutability is turned on,
into a private repository.
GitLab pushes with the build number as the tag. The format looks like :
dtr.example.com/admin/flask_build:66
. Since Immutability is turned
on, the tag of 66
can never be overwritten. This gives a solid
foundation. Next add two promotion policies based on the same
thresholds. The policy promotes the image to a public repo
dtr.example.com/admin/flask
with the same tag.
The next link in the chain is to have webhooks.
Webhooks can be managed through the GUI. MSR includes webhooks for common events such as pushing a new tag or deleting an image. This allows you to build complex CI and CD pipelines from your own MSR cluster. The webhook events you can subscribe to are as follows (repository specific):
Webhooks are created on a per-repository basis. More information about webhooks can be found in the Docker docs. MSR also has an API link in the lower left of the every screen. Simply click API.
This example is a continuation of the previous example that uses the
dtr.example.com/admin/flask_build
repository. Now, add a webhook. To
add one using the “Image promoted from repository” event, the webhook
must be configured to tell GitLab to use Notary and sign the image.
For reference the WEBHOOK URL
we used
ishttp://gitlab.example.com/api/v4/projects/$PROJECT/trigger/pipeline?token=$TOKEN&ref=$REF
.
The three fields that are needed here are $PROJECT, $TOKEN, and $REF.
$REF should be set to the branch name. $TOKEN should be set to the token
you get from GitLab. $PROJECT can be obtained from the trigger creation
page. More details about triggers can be found in the
Triggers section. The great thing about the
webhooks and triggers is they can kick off new jobs, similar to image
signing.
Notary is a tool for publishing and managing trusted collections of content. Publishers can digitally sign collection, and consumers can verify integrity and origin of content. This ability is built on a straightforward key management and signing interface to create signed collections and configure trusted publishers.
Docker Content Trust/Notary provides a cryptographic signature for each image. The signature provides security so that the image you want is the image you get. If you are curious about what makes Notary secure, read about Notary’s Architecture. Since Docker EE is “Secure by Default,” MSR comes with the Notary server out of the box.
A successfully signed image has a green check mark in the MSR GUI.
When teams get large it becomes harder to manage all the developer keys. One method for reducing the management load is to not let developers sign images. Using GitLab to sign all the images that are destined for production eliminates most of the key management. The keys on the GitLab server still need to be protected and backed up.
The first step is to create a user account for your CI system. For
example, assume GitLab is the CI system. Navigate to MSR’s web
interface. As an admin user, navigate to Organizations, and select
New organization. Call this new organization ci
. Next create a
team within the ci
organization by clicking the Team +
button.
Call the new team gitlab
. Now add the GitLab user by navigating into
the team, and selecting Add User. Create a user with the name
gitlab
, and set a strong password. This creates a new user and adds
them to the ci
organization.
Now that the team is set up, turn on policy enforcement. Navigate to Admin Settings, and select the Docker Content Trust subsection. Select Run Only Signed Images to enable Docker Content Trust. Click Add Team + in blue to get to the next section. In Select Org… select the ci team that was just created. Next in the Select Team… box select gitlab. Save the settings.
This policy requires every image that is referenced in a
docker pull
, docker run
, or docker service create
to be
signed by a key corresponding to a member of the gitlab
team. In
this case, the only member is the gitlab
user.
The signing policy implementation uses the certificates issued in user
client bundles to connect a signature to a user. Using an incognito
browser window (or otherwise), log into the gitlab
user account you
created earlier. Download a client bundle for this user. It is also
recommended that you change the description associated with the public
key stored in MKE such that you can identify in the future which key is
being used for signing.
Please note each time a user retrieves a new client bundle, a new keypair is generated. It is therefore necessary to keep track of a specific bundle that a user chooses to designate as the user’s signing bundle.
Once you have decompressed the client bundle, the only two files you
need for the purposes of signing are cert.pem
and key.pem
. These
represent the public and private parts of the user’s signing identity
respectively. Load the key.pem
file onto the GitLab servers, and use
cert.pem
to create delegations for the gitlab
user in our
Trusted Collection.
One thing to note is that you can now enforce signature policy on a single engine. You can find documentation for Enabling DCT in Mirantis Container Runtime Configuration
On the GitLab server, each repository will need to be initialized. On
the gitlab
server, do the following:
# become root
$ sudo -i
# add DTR's CA to the HOST OS - Centos/Rhel
$ curl -sk https://dtr.example.com/ca -o /etc/pki/ca-trust/source/anchors/dtr.example.com.crt
$ update-ca-trust
$ systemctl restart docker
# set repository signing passwords
$ export DOCKER_CONTENT_TRUST_ROOT_PASSPHRASE="Pa22word" \
DOCKER_CONTENT_TRUST_REPOSITORY_PASSPHRASE="Pa22word"
# add signer to repo
$ docker trust signer add --key cert.pem admin dtr.example.com/admin/flask
# add private key for signing
$ docker trust key load --name admin key.pem
To enable automated signing, the variable
DOCKER_CONTENT_TRUST_REPOSITORY_PASSPHRASE
needs to be configured
within the GitLab project similarly to the Build Declarative variables.
Next, create the GitLab project for signing. Create a new project with
the following .gitlab-ci.yml
. This uses the local
/root/.docker/trust
directory.
# Official docker image.
variables:
DOCKER_DRIVER: overlay2
image: docker:latest
before_script:
- docker login -u $DTR_USERNAME -p $DTR_PASSWORD $DTR_SERVER
stages:
- signer
signer:
stage: signer
script:
- docker pull $DTR_SERVER/admin/flask:latest
- docker trust sign $DTR_SERVER/admin/flask:latest
- docker rmi $DTR_SERVER/admin/flask:latest
Here is what a successful output from the signing project should look like:
Now the final step is to create a Pipeline Trigger for the Image Signing project. Use the webhook with an “Image promoted from repository” event.
Automating a Secure Supply Chain is not that difficult. After following this reference architecture, GitLab is setup with at least two projects. One is for the code, Dockerfile, and stack yaml. A second is for the image signing component. MSR also has two repositories. One is for the private build, and a second is for the signed promoted image.
The main goal is to have an image that is both Promoted, based on a good scan, and Signed, with Notary, in an automated fashion.
While specific tools were discussed, there are a few takeaways from this reference architecture:
Here is another look at the workflow.
Consider the ideas and feel free to change the individual tools out for what your organization has.
