Deploying a workload to a Kubernetes cluster¶

Deploy an NGINX server¶

In this example, a simple Kubernetes Deployment object for an NGINX server is defined in a YAML file.

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 2
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.7.9
        ports:
        - containerPort: 80

This YAML file specifies an earlier version of NGINX, which will be updated in a later section.

To create the YAML file:

1. Navigate to the UCP web UI, and from the left pane, click Kubernetes.

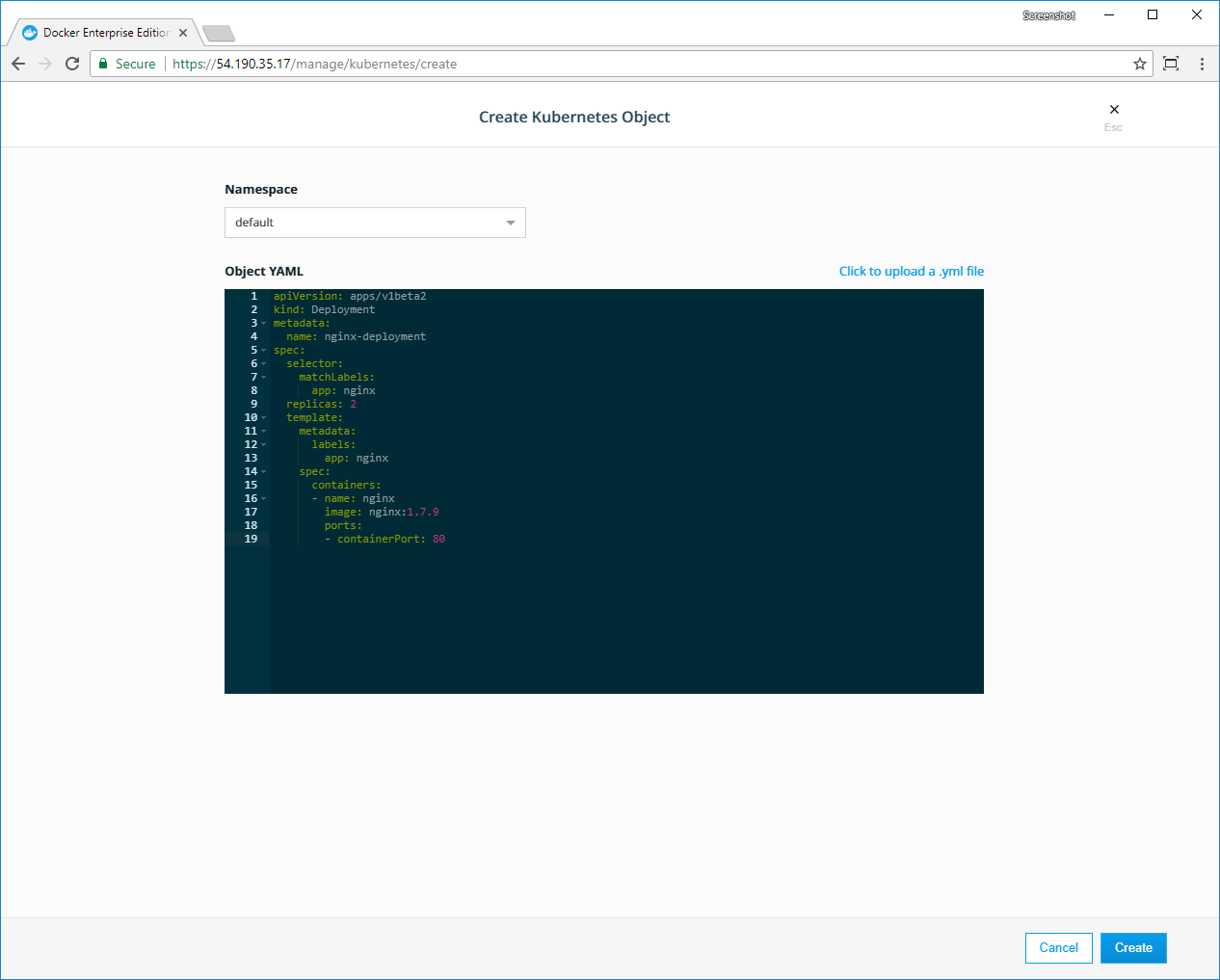

2. Click Create to open the Create Kubernetes Object page.
3. From the Namespace drop-down list, select default.
4. Paste the previous YAML file in the Object YAML editor.
5. Click Create.

Inspect the deployment¶

The UCP web UI shows the status of your deployment when you click the links in the Kubernetes section of the left pane.

1. From the left pane, click Controllers to see the resource controllers that Docker Enterprise created for the NGINX server.
2. Click the nginx-deployment controller, and in the details pane, scroll to the Template section. This shows the values that Docker Enterprise used to create the deployment.

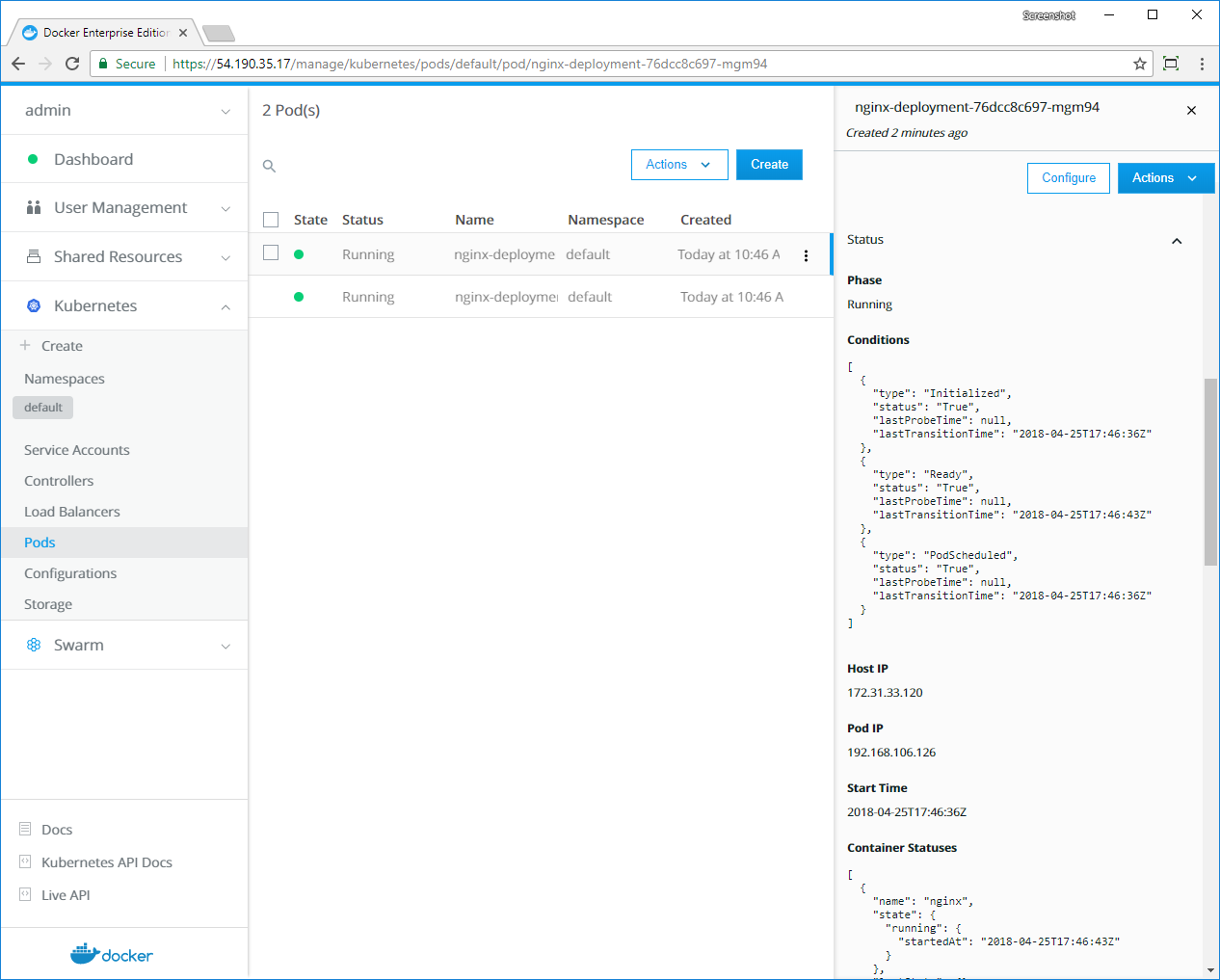

3. From the left pane, click Pods to see the pods that are provisioned for the NGINX server. Click one of the pods, and in the details pane, scroll to the Status section to see that pod’s phase, IP address, and other properties.

Expose the server¶

The NGINX server is up and running, but it’s not accessible from outside of the cluster. Create a YAML file to add a NodePort service to expose the server on a specified port.

apiVersion: v1
kind: Service
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  type: NodePort
  ports:
    - port: 80
      nodePort: 32768
  selector:
    app: nginx

The service connects the cluster’s internal port 80 to the external port 32768.

To expose the server:

1. Repeat the previous steps and copy-paste the YAML file that defines the nginx service into the Object YAML editor on the Create Kubernetes Object page. When you click Create, the Load Balancers page opens.

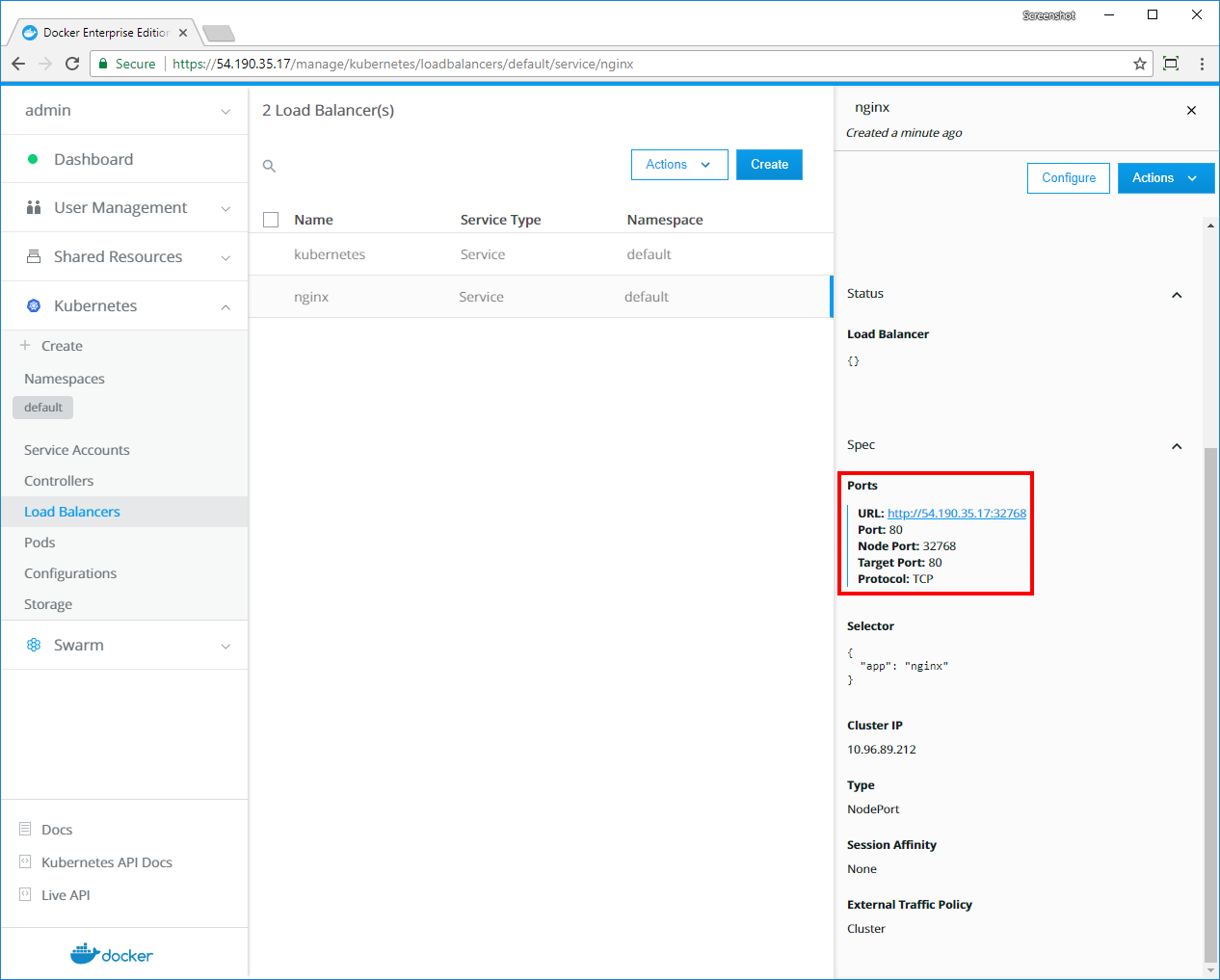

2. Click the nginx service, and in the details pane, find the Ports section.



3. Click the link that’s labeled URL to view the default NGINX page.

The YAML definition connects the service to the NGINX server using the app label nginx and a corresponding label selector.

Update the deployment¶

Update an existing deployment by applying an updated YAML file. In this example, the server is scaled up to four replicas and updated to a later version of NGINX.

...
spec:
  progressDeadlineSeconds: 600
  replicas: 4
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: nginx
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: nginx
    spec:
      containers:
      - image: nginx:1.8
...

1. From the left pane, click Controllers and select nginx-deployment.

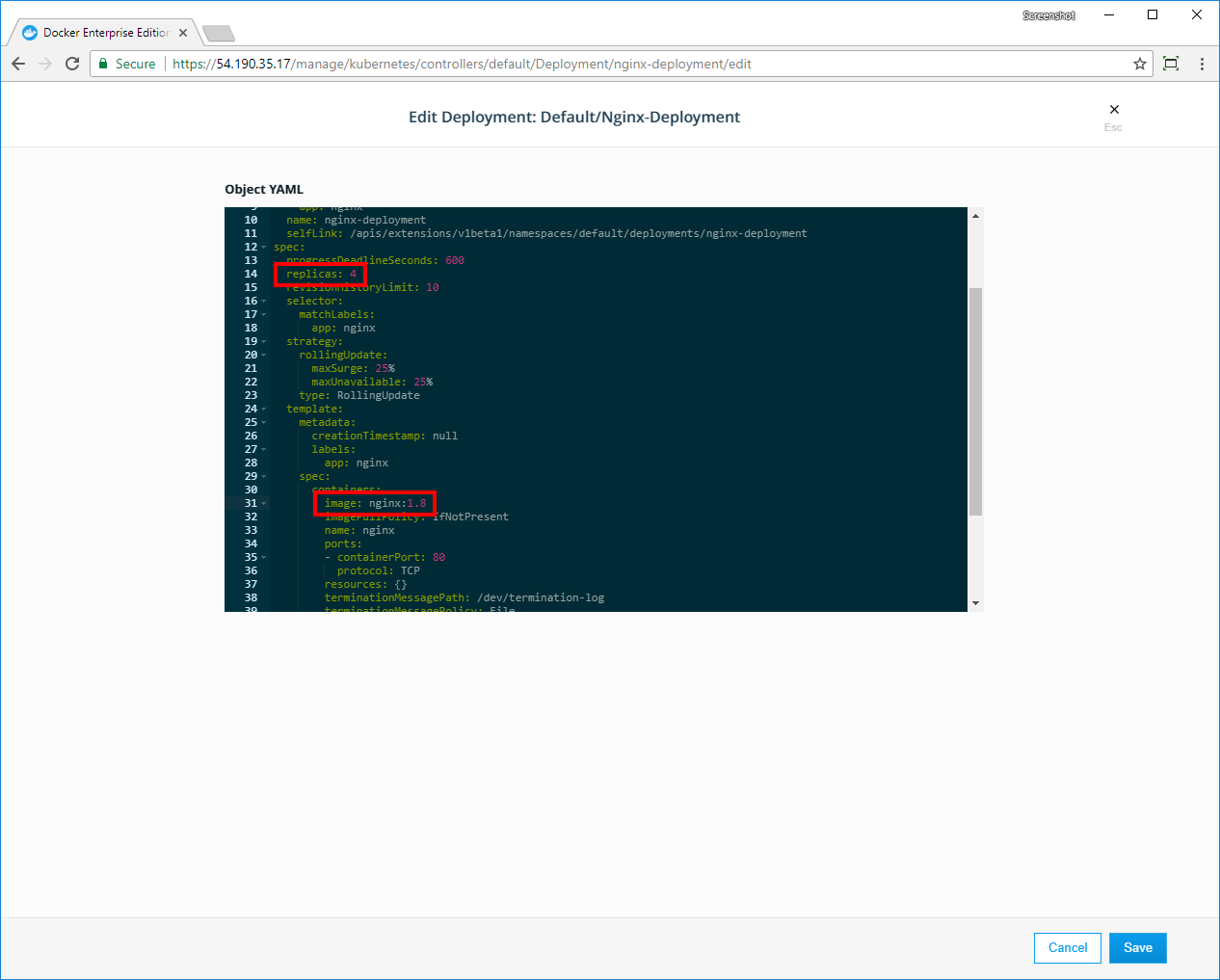

2. In the details pane, click Configure, and in the Edit Deployment page, find the replicas: 2 entry.

3. Change the number of replicas to 4, so the line reads replicas: 4.

4. Find the image: nginx:1.7.9 entry and change it to image: nginx:1.8.



5. Click Save to update the deployment with the new YAML file.

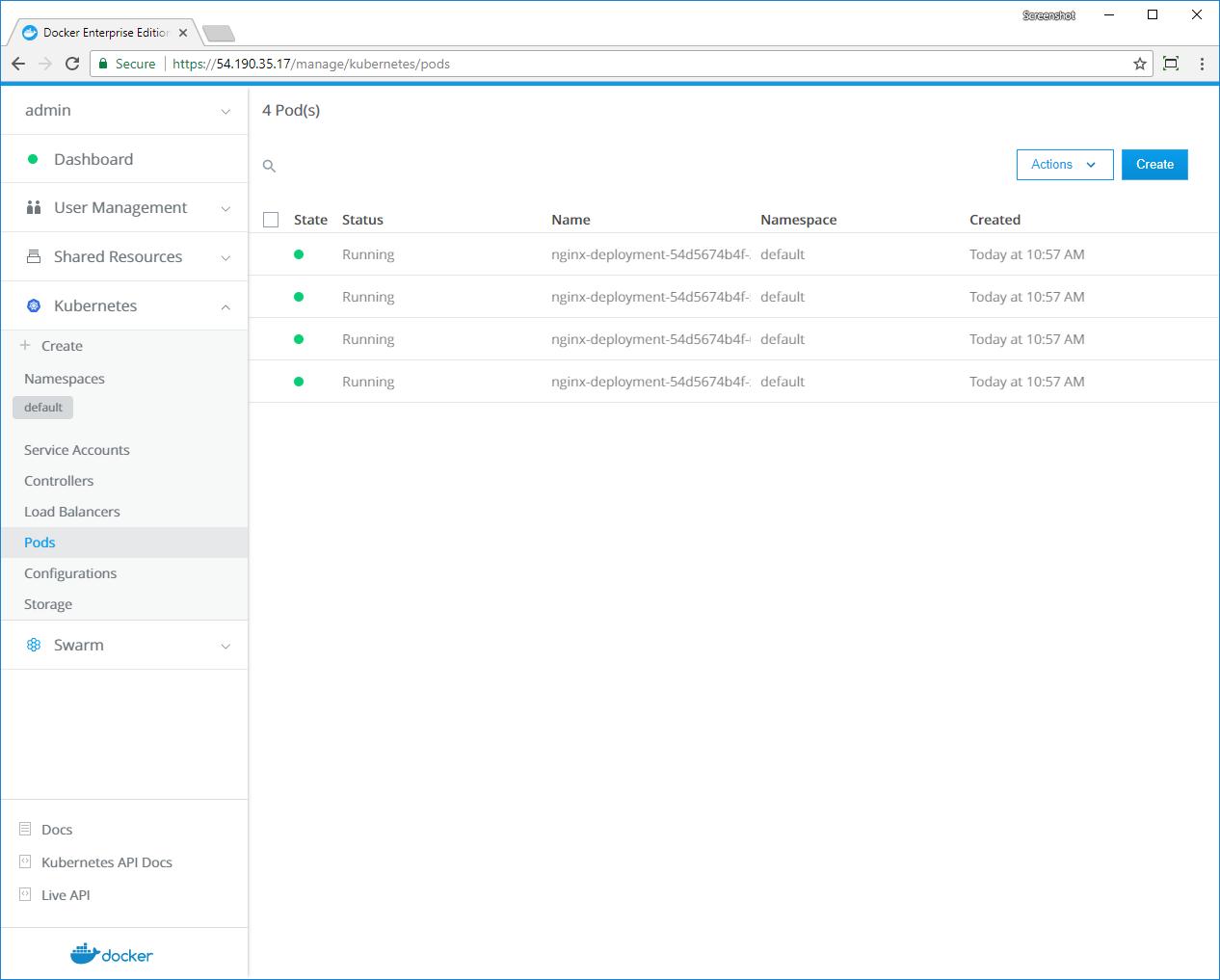

6. From the the left pane, click Pods to view the newly created replicas.



Use the CLI to deploy Kubernetes objects¶

With Docker Enterprise, you deploy your Kubernetes objects on the command line using kubectl.

Use a client bundle to configure your client tools, like Docker CLI and kubectl to communicate with UCP instead of the local deployments you might have running.

When you have the client bundle set up, you can deploy a Kubernetes object from the YAML file.

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: nginx-deployment
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 2
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.7.9
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  type: NodePort
  ports:
    - port: 80
      nodePort: 32768
  selector:
    app: nginx

Save the previous YAML file to a file named “deployment.yaml”, and use the following command to deploy the NGINX server:

kubectl apply -f deployment.yaml

Inspect the deployment¶

Use the describe deployment option to inspect the deployment:

kubectl describe deployment nginx-deployment

Also, you can use the UCP web UI to see the deployment’s pods and controllers.

Update the deployment¶

Update an existing deployment by applying an updated YAML file.

Edit deployment.yaml and change the following lines:

• Increase the number of replicas to 4, so the line reads replicas: 4.
• Update the NGINX version by specifying image: nginx:1.8.

Save the edited YAML file to a file named “update.yaml”, and use the following command to deploy the NGINX server:

kubectl apply -f update.yaml

Check that the deployment was scaled out by listing the deployments in the cluster:

kubectl get deployments

You should see four pods in the deployment:

NAME                   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
nginx-deployment       4         4         4            4           2d

Check that the pods are running the updated image:

kubectl describe deployment nginx-deployment | grep -i image

You should see the currently running image:

Image:        nginx:1.8
